Urban environments are complex tapestries woven from elements of design, nature, and human experience. Stora Badhusgatan, located in Inom Vallgraven, offers a unique tableau for understanding these dynamics. In our recent analysis, we dove deep into the metrics that make urban spaces livable, comfortable, and efficient.
Understanding the Fundamentals
Two concepts are pivotal to our analysis:
Albedo: Measures the diffuse reflection of solar radiation, ranging from 0 (black body that absorbs all) to 1 (reflects all radiation).
Universal Thermal Climate Index (UTCI): An index representing physiological comfort in specific environmental conditions. The Dutch wind nuisance standard, NEN 8100, recently incorporated this, focusing on discomfort thresholds for wind speed.

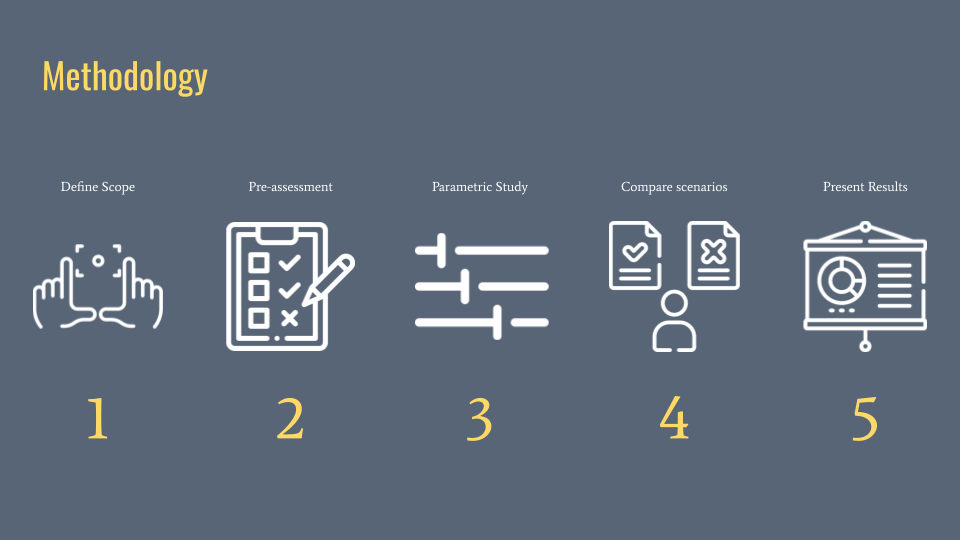

Methodology: Setting the Stage

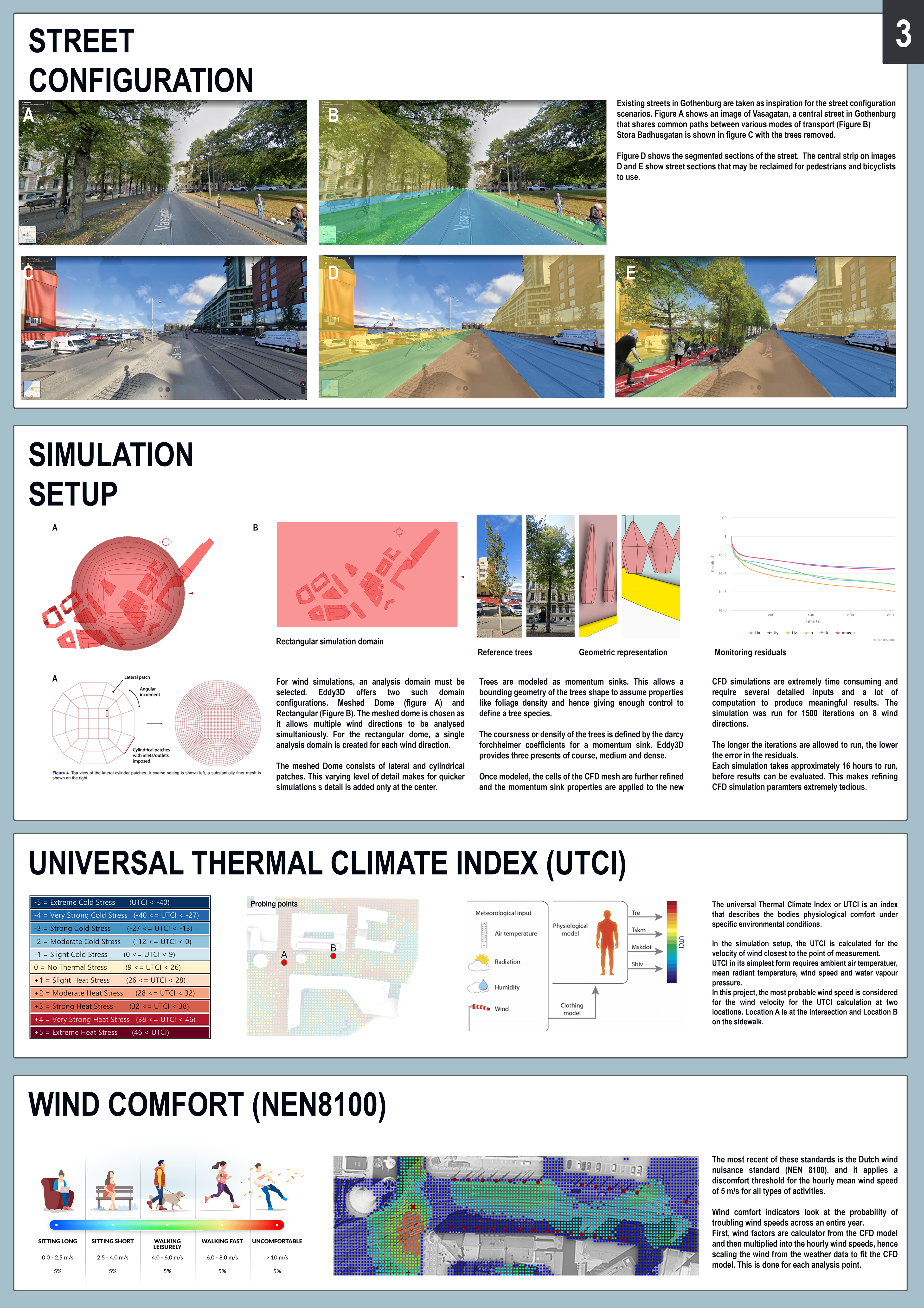

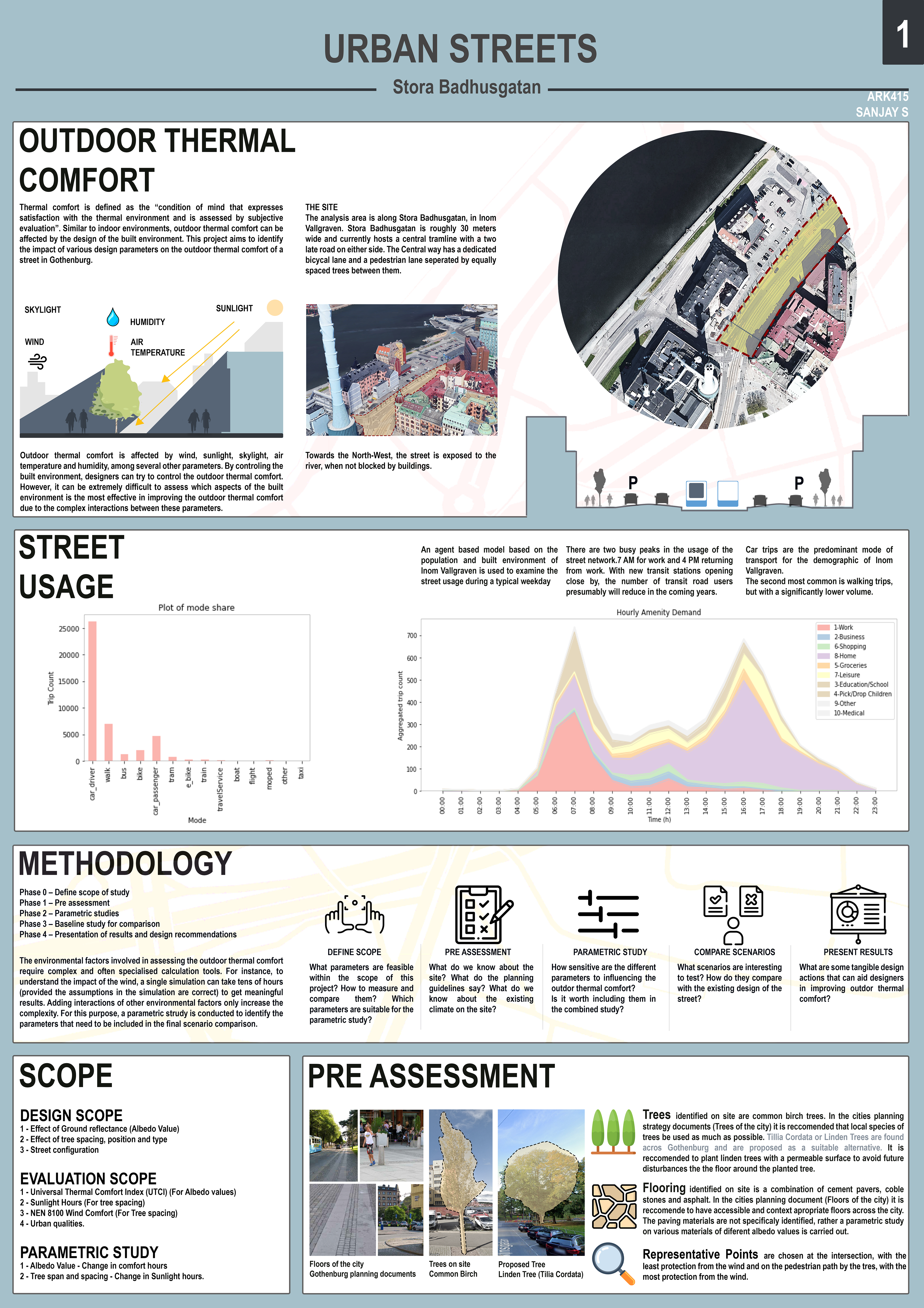

The study area, Stora Badhusgatan, is approximately 30 meters wide. Central to it is a tramline, flanked by a two-lane road on both sides. Additionally, a dedicated bicycle lane and pedestrian pathway are interspersed with equally spaced trees.
Key Findings
1. Base Case Analysis: Focused on maximizing sunlight hours and traffic volume, the base case revealed a few trade-offs:
Pros: Optimal sunlight and increased traffic volume.
Cons: Compromised wind comfort and limited pedestrian space. The placement of narrow birch trees and areas allocated for pedestrian and bicycle traffic emerged as primary influencers.
2. Impact of Albedo on Thermal Stress: Mean Radiant Temperature (MRT) calculations, considering different pavement albedo values, were conducted. The salient points include:
Marginal thermal stress improvement beyond an albedo of 0.4.
Albedo changes had negligible effects on "Very Strong Cold" and "Extreme Cold" UTCI categories.
3. Scenario Evaluations:
Scenario 02: A notable highlight was the superior thermal comfort year-round. This can be attributed to densely spaced trees with vast canopies. However, the UTCI metric did not consider the annual probability of extreme wind speeds, leading to wind comfort issues as per the NEN8100 indicator.
Scenario 03: The NEN 8100 evaluations lauded this scenario for wind comfort, primarily due to increased spaces for pedestrians and cyclists. This allocation permitted dense-canopy trees on both sides of the street, subsequently reducing sunlight penetration and bringing down the Mean Radiant Temperature.
Conclusion
Stora Badhusgatan's analysis underscores the importance of holistic urban planning. While sunlight, wind comfort, and pedestrian space are critical factors, it's the intricate balance between them that defines the success of urban designs. As urban planners, it's crucial to understand and incorporate these findings to create spaces that truly resonate with the inhabitants' needs.
