Urban Geodata and Grasshopper

An Proof of Concept urban layout generator created to demonstrate the potential of "Urban Geodata and Grasshopper" workshop hosted by rat[LAB] Education. The concept and workshop was developed by Vinay Zachariah and Sanjay Somanath.

A quick peek into creating an urban planning toolkit in grasshopper using OSM data.

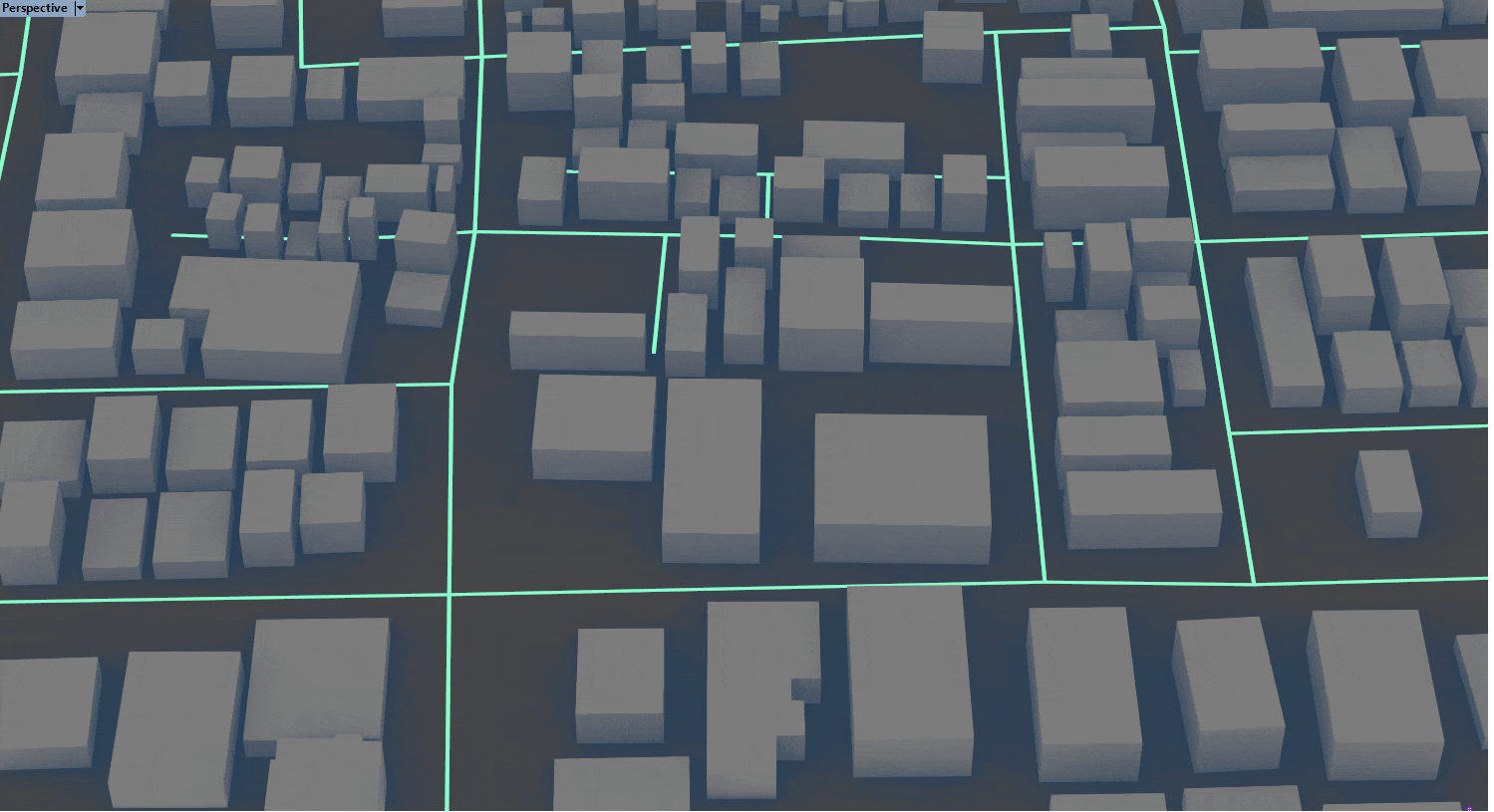

Footprint Creation using Voronoi as well as 4 other grid layout options.

A quick and dirty unit layout organiser. The idea is to simply create a proof of concept to what is achievable.

A low resolution radiation analysis using Ladybug Tools.

This Urban Planner is a part of a workshop "Urban Geodata and Grasshopper".

The workshop is developed by Vinay Zachariah and myself, hosted by rat[LAB] Education.

Link to workshop - https://lnkd.in/d5PqW-s

The demo was created to show what is possible with grasshopper and it's plugin ecosystem.

Plugins used

ELK2

Puffer Fish

Decoding Spaces Toolbox

Ladybug Tools

LunchBox

Conduit

Human

Human UI

Clipper

Parakeet

And probably a few more.
